CIVIL ENGINEERING AND MATERIAL SCIENCES

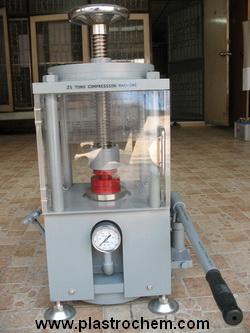

7.9 25 Tons Pellet Compression Machine

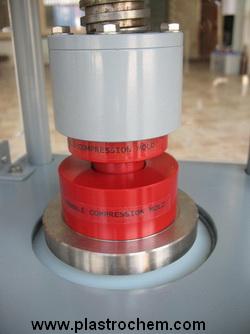

Note : All machine configuration and specification are subjected to change with out advance notice for better quality of product. General Description : The manual 25 tons hydraulic pellet press is a compact laboratory instrument with particularly simple and safe operation. Its maximum compression force of 25 tons. The compression force on term of kN to be measured by dial pressure gauge and converted to kN by calculation. Specification : Frame: Mild steel , 4 columns car bon steels and 4 adjustable thump screws for level adjustment. Hydaraulic piston: Hand operated, 120mm dia. Maximum ram traveling 90 mm Operating clearance: upto 150 mm. Hand wheel on the top for fast adjustment will be provided. Dies: Steel 32mm dia. Safety device: 10mm clear acrylic guard with front opening door. Dimension and Weight (Approx.) : W x L x H = 400mm X 400mm X 600mm Net weight: 120kgs, Gross weight: 130 kgs
