    Metacentric Height Apparatus

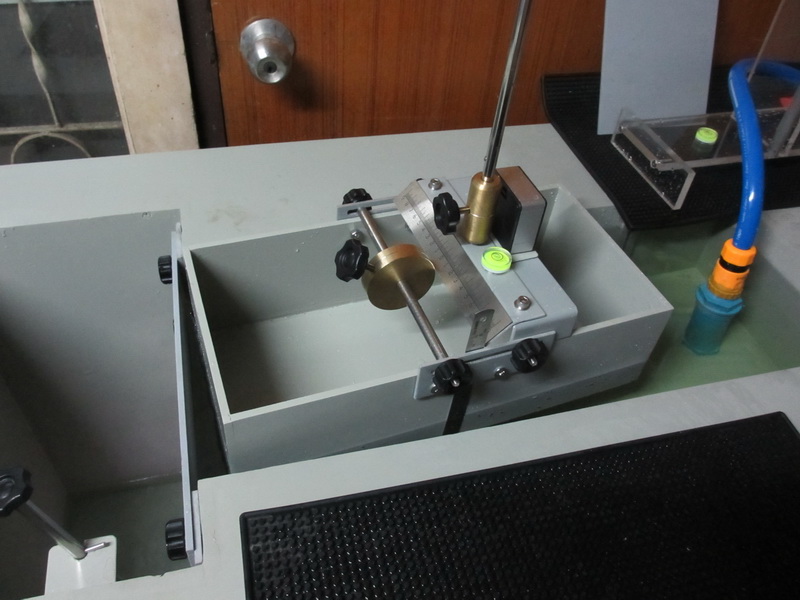

    Meta Centric Height

    General Description :
    This equipment allows a thorough investigation of the factors affecting the stability of a floating body


    Feature and experimental capability:
    1. Determining the center of gravity of the pontoon
    2. Determining the metacentric height and from this the position of the metacenter for the pontoon
    3. Varying the metacentric height with angle of heel

    Specifications:
    1. Max. angle of heel: ±13°
    2. Corresponding linear dimension: ±90mm
    3. Pontoon dimensions: length 350mm

    Weight: 15kg Net (approximately) 30kg Gross (approximately)
    Dimension: 400mm(L) x 200mm(W) x 600mm(H) (approximately)
    Delivery:
    • 1 complete set of Mini-Steam Power Plant and its accessories.
    • 1 set of operating and instruction manual available in English.

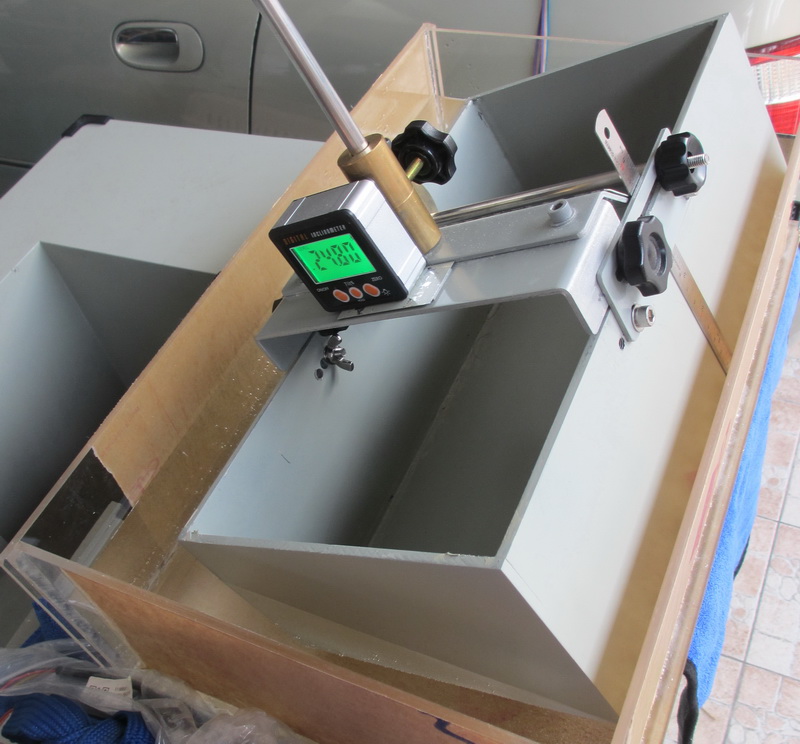

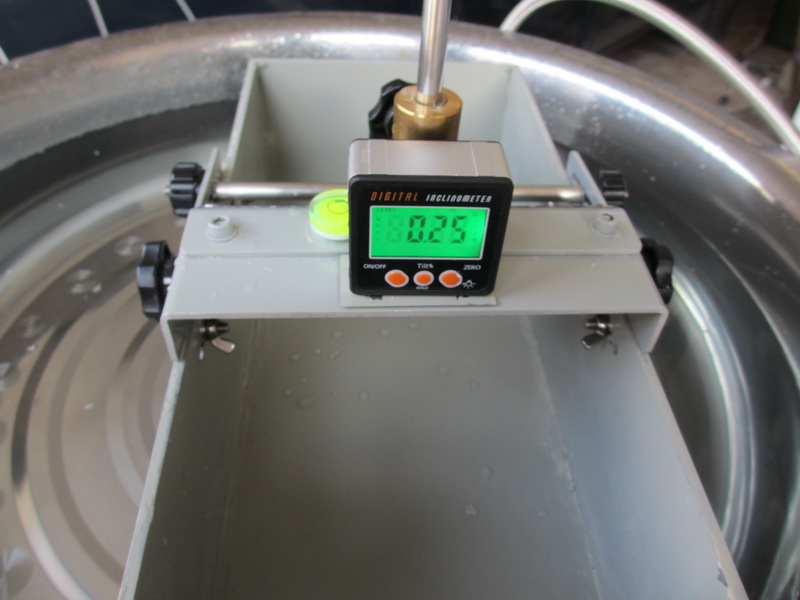

    Floating normally Tilting Float

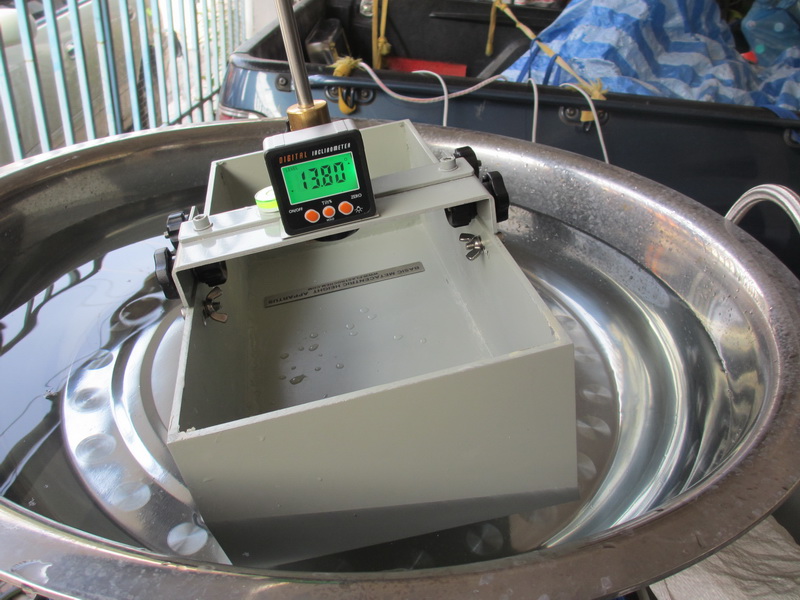

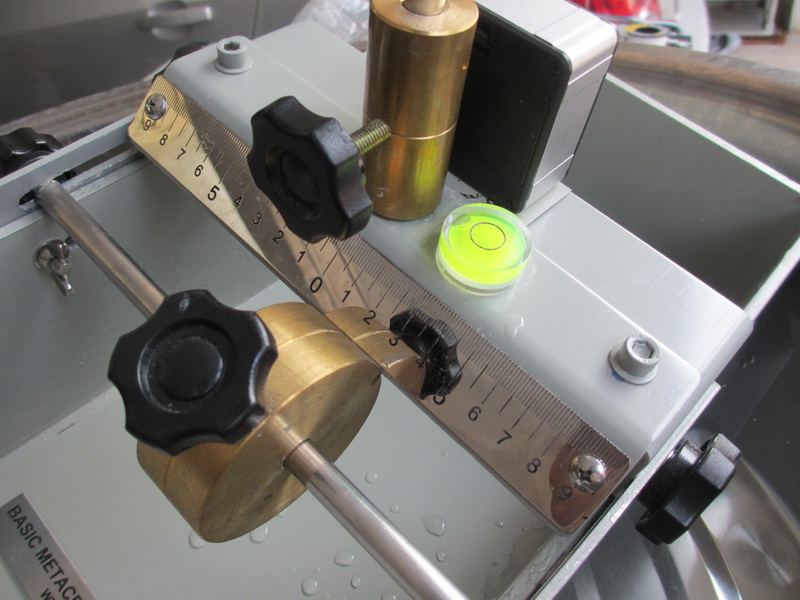

    Close up look In the Basin
