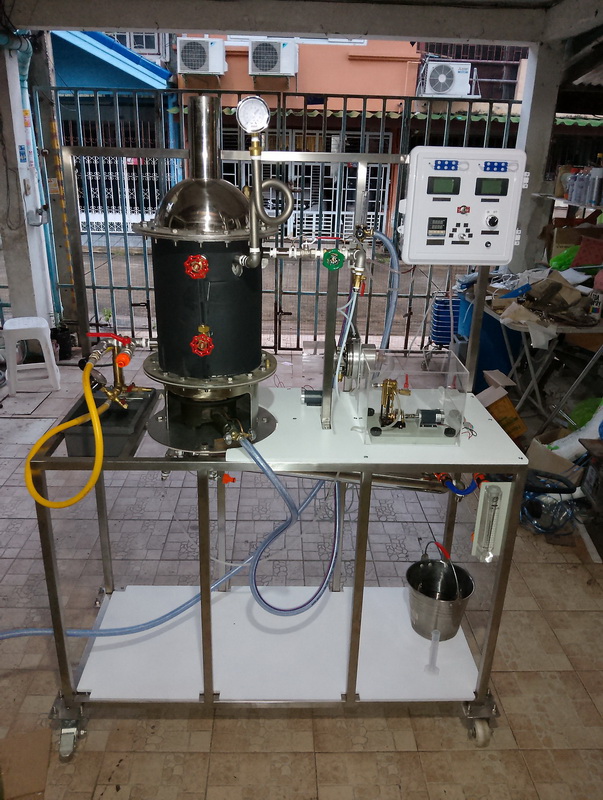

Mini-Steam Power Plant Apparatus 6kg type (Steam Engine & Steam Turbine)



General Description :
Miniature Steam Power Plant is our small in size but is one of comprehensive range of Steam Power Products in available market and has been designed to allow teaching establishments to give students an appreciation of steam and its properties, without the larger capital investment normally required.


A small LPG fired boiler supplies steam to a single stage turbine engine which drives, by means of a belt, a small DC generator with switchable resistive loading.


The exhaust steam from the engine is condensed in a water-cooled condenser, the condensate being measured by weighing the collecting beaker provided.

Feature and experimental capability:

1. Demonstration model steam system representative of Industrial Power System.
2. Self-contained complete teaching facility.
3. Low-cost introduction to steam studies.
4. Simply installed
5. Comprehensive instrumentation applications.
6. Demonstration of steam power generation cycle.
7. Thermal and plant efficiency.
8. Power generation.
9. Fuel consumption.


Specifications:

1. Gas fired model steam boiler: with a design pressure of about 2 barg and equivalent evaporation of 6 kgs steam per hour at 100°C at atmospheric pressure
2. Boiler feed pump (water feed pump) and feed water tank

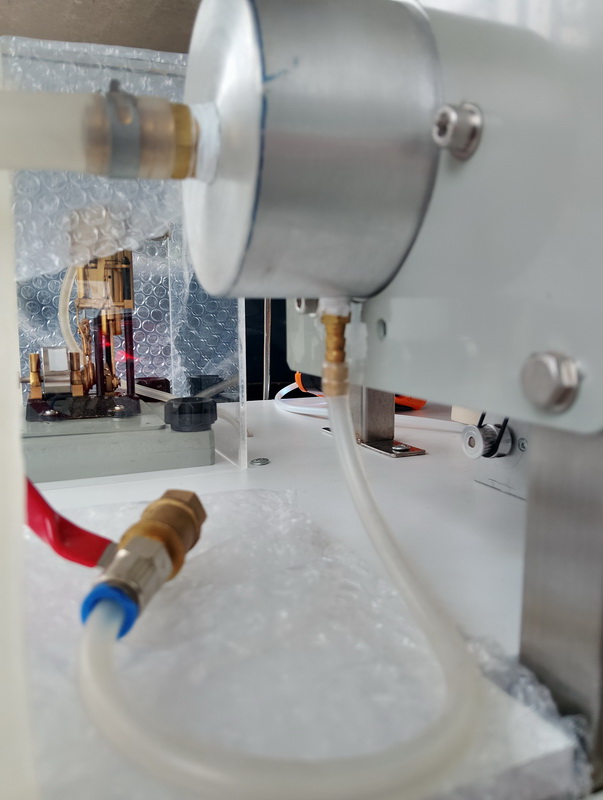

3. Steam turbine, Impulse Type
   • Maximum Power: Electrical ≥ 2.5W

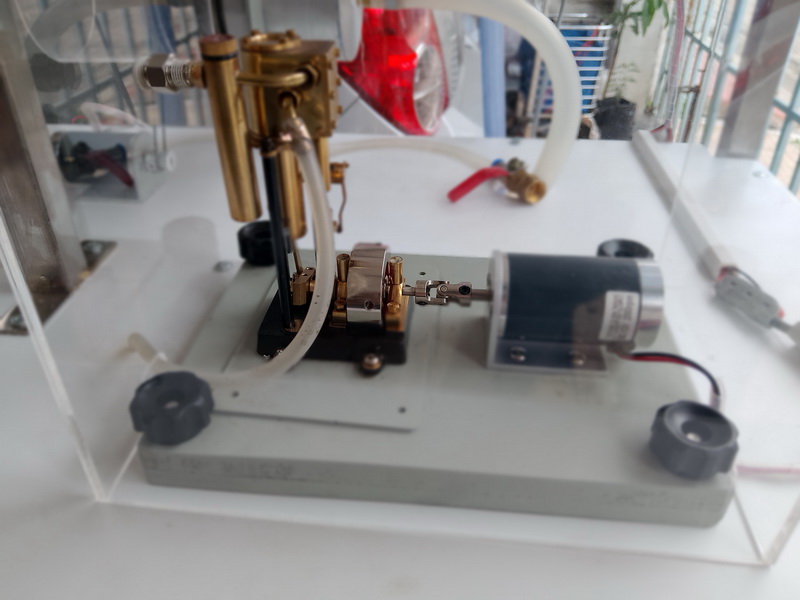

4. Steam engine, Double Action
   • Maximum Power: Electrical ≥ 2.5W
5. DC generator:
   • Coupled to the engine by a driving belt.
   • With resistive load bank of lamp bulb with nominal rating of 12/24V, 0.15 - 0.3A or better.
6. Condenser unit:
   • Shell and tube atmospheric type condenser. Stainless steel.
7. Condensate collection by beaker and graduated cylinder.
8. Minimum cooling water flow rate 0.5 LPM.
9. Instrumentation: Comprehensive instrumentation is supplied comprising;
10. Pressure Boiler steam via 0-4 bar pressure gauge
11. Temperatures measuring of:
    • Boiler outlet
    • Engine steam inlet
    • Engine steam exhaust
    • Condenser cooling water inlet.
    • Condenser cooling water outlet
    • Condensate
12. Flow meters for fuel gas: Rotameter, LPM
13. Cooling water: Tap water with variable area flow meter, 1 to 8 LPM.

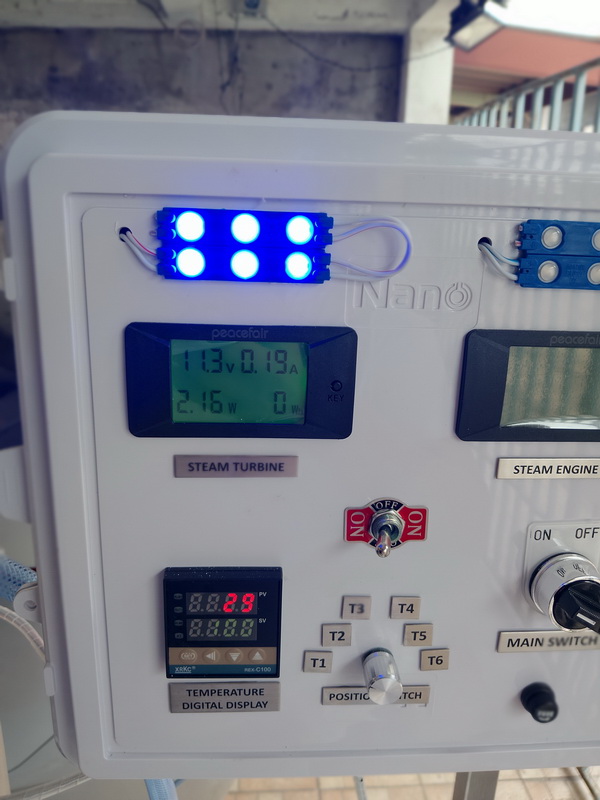

14. V/A digital meter
15. All necessary interconnecting pipe work, valves and fittings, together with electrical cabling, are included.
16. All above equipment is supplied on a fabricated stainless-steel frame with 4 brakable wheels and all components and instrumentation mounted on plaswood at working height.


Required service:

1. Fuel: Domestic used LPG as standard.
2. Water: Main water supply.
3. Electrical power supply
4. Drainage system.


Weight: 130 Kgs Net (approximately) 180 Kgs Gross (approximately)
Dimension: 1200mm(L) x 600mm(W) x 1800mm(H) (approximately)
Delivery:
• 1 complete set of Mini-Steam Power Plant and its accessories.
• 1 set of operating and instruction manual available in English.

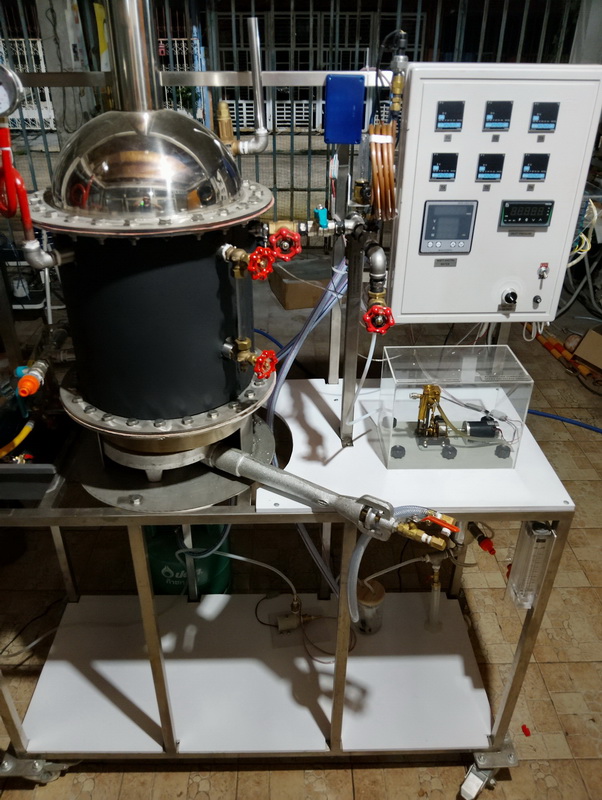

Mini-Steam Power Plant Apparatus 12kg type (Custom Order)




Feature Upgrade:


1. 25% Larger Boiler, Pressure 3.5 barg and equivalent evaporation of 12 kgs steam per hour at 100°C at atmospheric pressure
2. Twice powerful gas stove

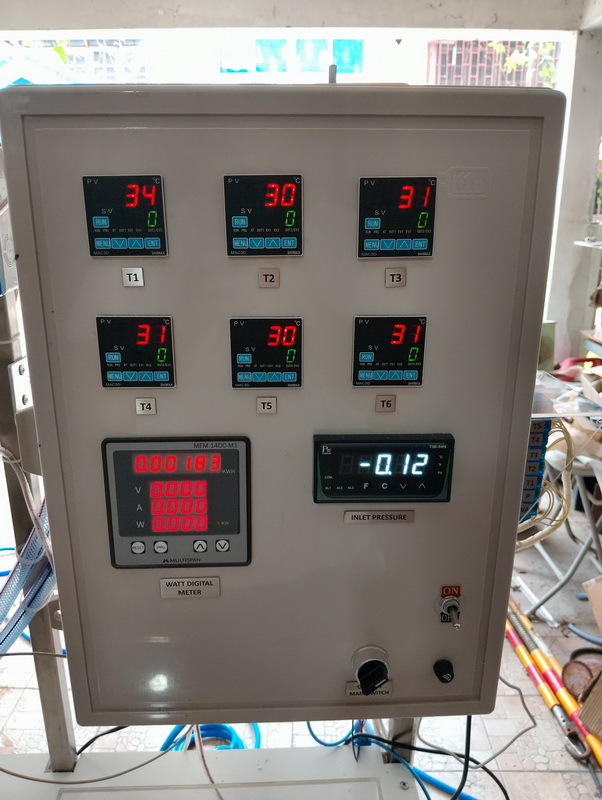

3. Full DAQ system to monitored pressure and temperature, export to MS excel. (PC & Laptop is not included)
4. Able to utilize both Gas Boiler and Electric Boiler
